6 Colors

8.14˝ Spectra™ 6 ePaper Display

$199.00

ADD TO FAVORITE

  • Description

    « Compatible with E Ink THOR evaluation kit »

    8.14˝ ePaper Display (ED2208-HAB) is a 8.14-inch color (E Ink SpectraTM 6), reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It offers 6 colors of black, white, yellow, red, blue and green images.

    E Ink Spectra 6, bright and saturated color combinations contributed by 4 –Pigments system for creative promotion and faster update time, wide temperature range to accommodate more needs. High resolution (144 ppi) to display more content to attract consumer's attention.

    By applying ED2208-HAB with THOR development kit (driving board + accessories) enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop.

    Learn more about THOR Driving Board.

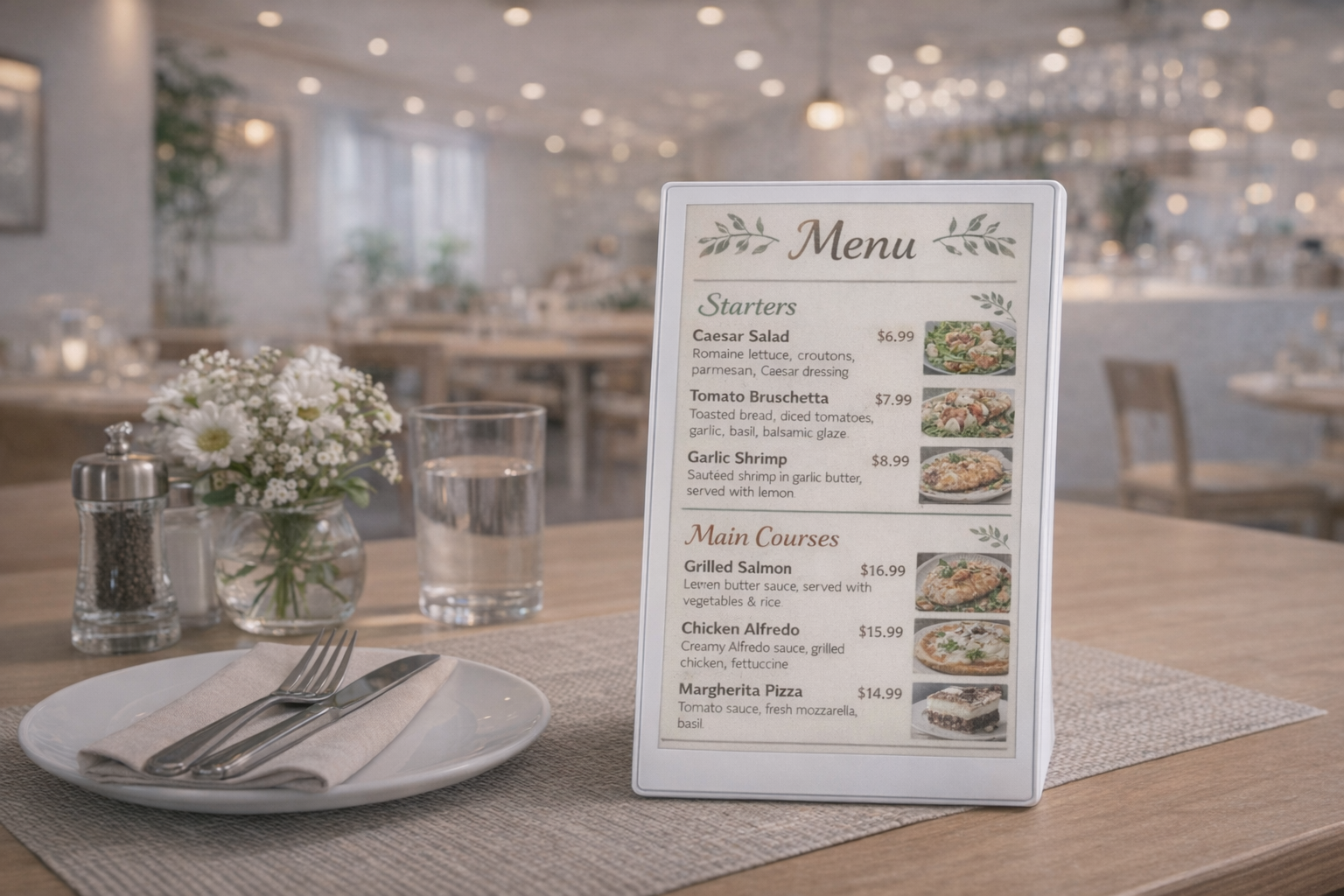

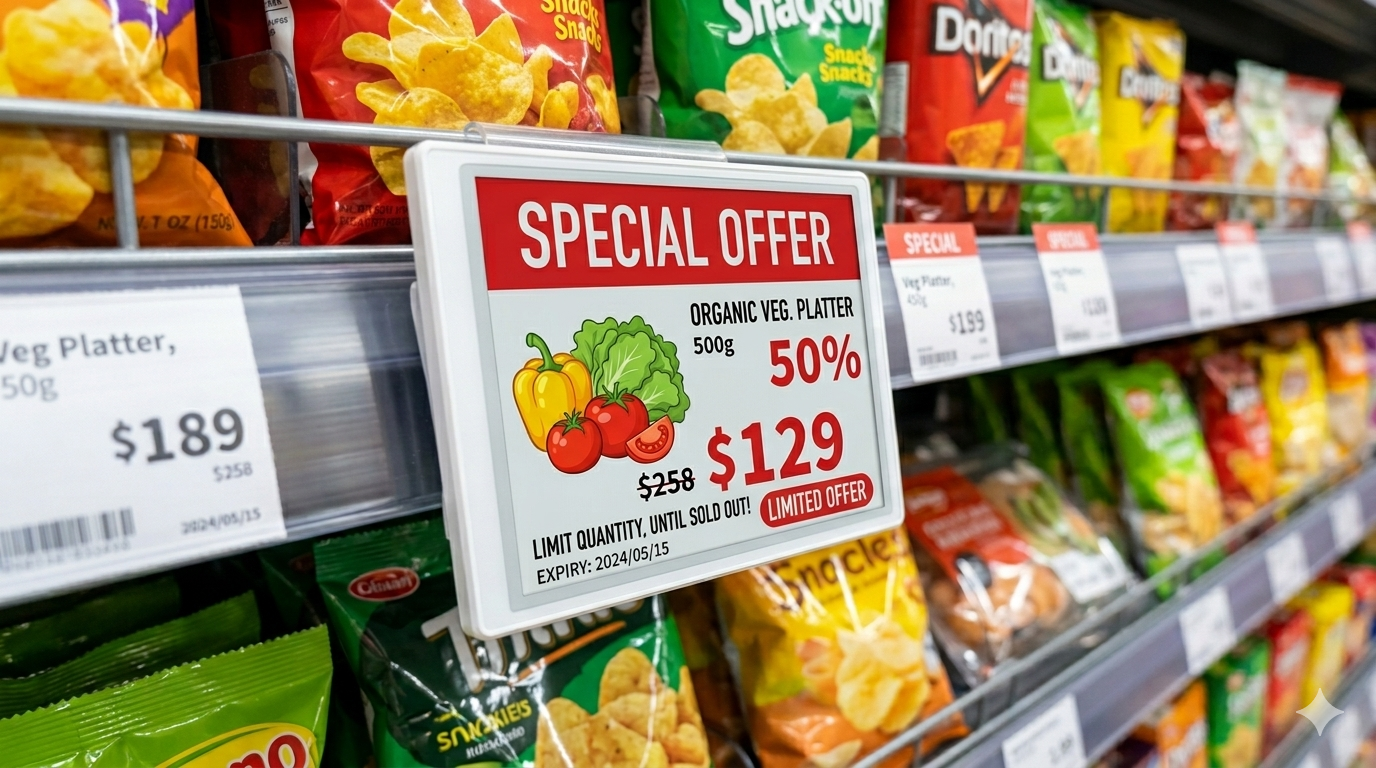

    This model is suitable for the applications of ESL.


  • Note

    Driving board and accessory are not included in the display module package. Please purchase a THOR Driving Board package and THOR Accessories.

    If you are already in possession of a THOR Driving Board, please make sure you have matching accessories (THOR Accessories package for ED2208-HAB)


Please select the corresponding project, and we will provide you with relevant support files according to your needs.

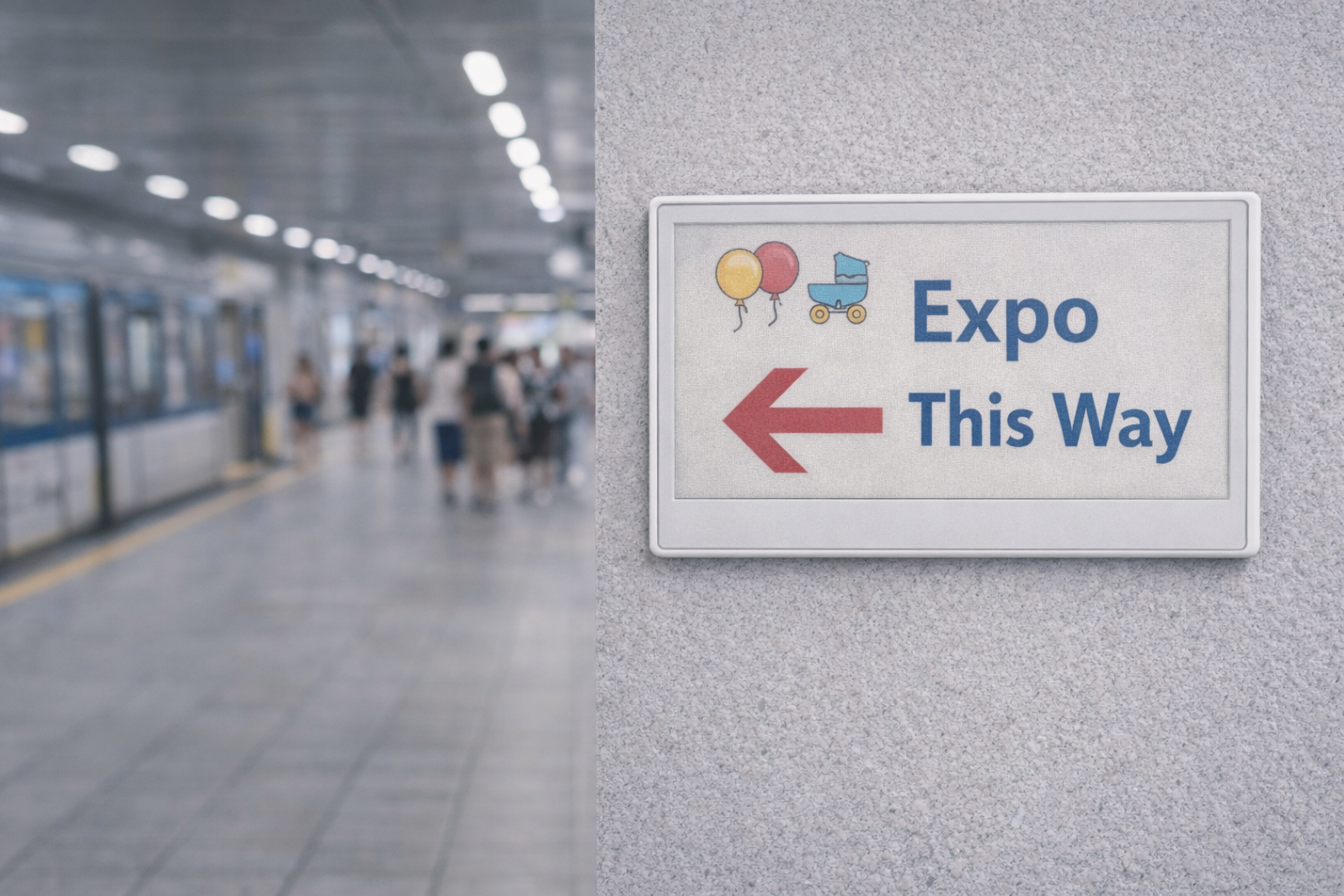

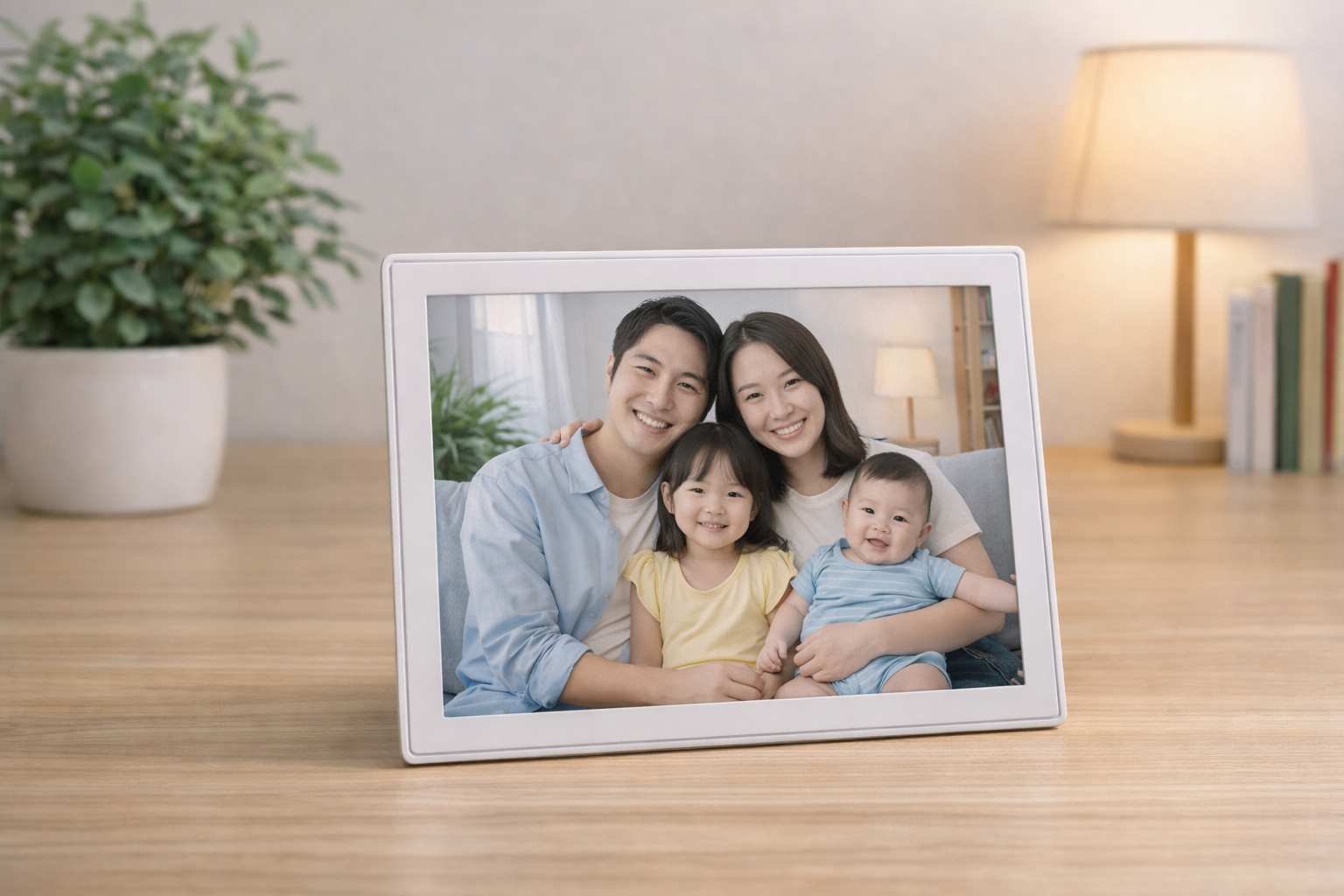

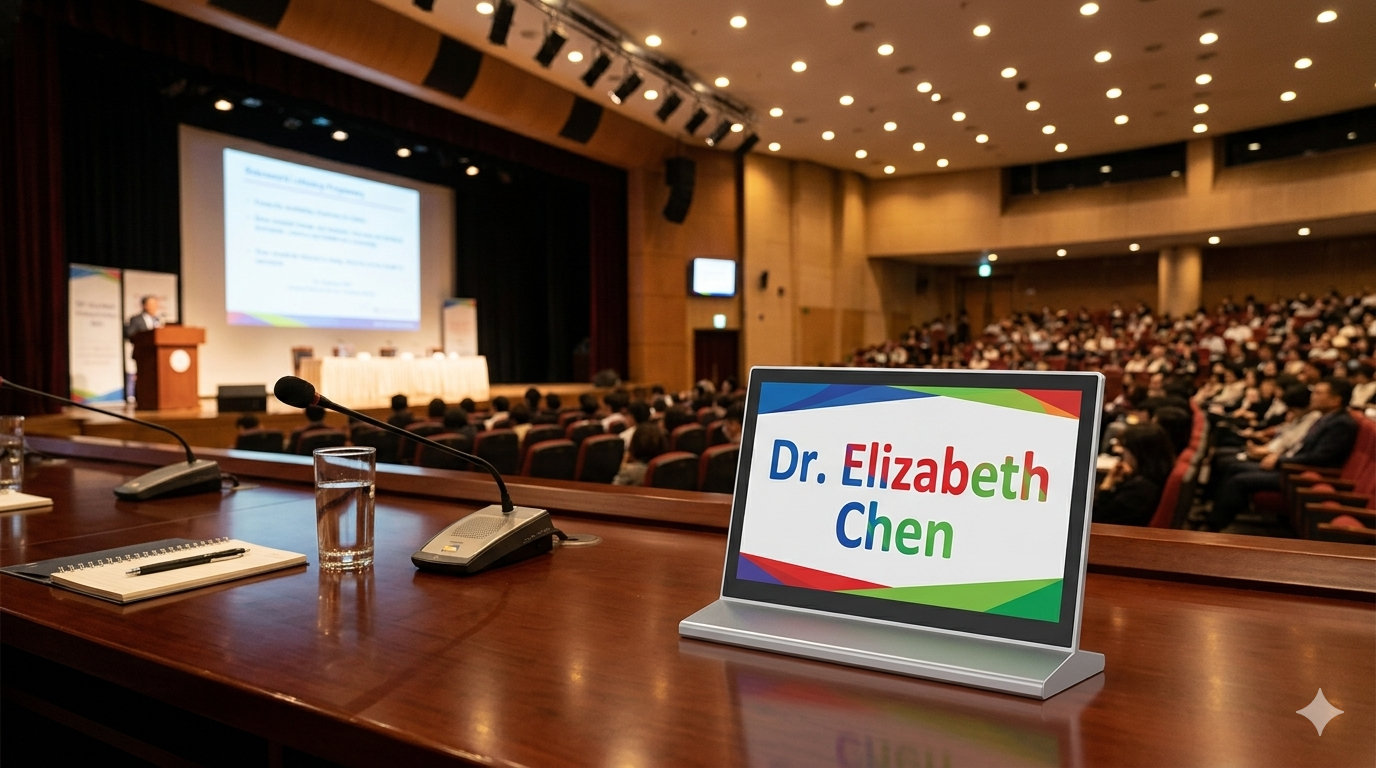

Application

  • Reading & Writing

  • Education

  • Business & Office

  • Mobile & Wearables

  • Retail

  • Logistics & Factory

  • Healthcare & Hospital

  • Transportation & Outdoor

  • Indoor Signage

  • Home & Appliance

  • Automotive

  • Innovative Design

  • Module Size

  • 8.14˝ Spectra™ 6 ePaper Display (ED2208-HAB)

  • Add to Cart

    Added to Cart

    Customers also considered

    • }

      THOR Driving Board

      $150.00

      Add to Cart

      Add to Cart

    • }

      THOR Accessories

      $200.00

      Add to Cart

      Add to Cart

    • Introduction

    • Specification

    • Compatibility Table

    • Related Products

    Introduction

    About This Item

    Operation Instruction Video

    EPD Layout

    Features
    • Highlight Red, Yellow, Green and Blue color
    • High contrast
    • High reflectance
    • Ultra wide viewing angle
    • Ultra low power consumption
    • Pure reflective mode
    • Bi-stable
    • Antiglare hard-coated front-surface
    • Low current deep sleep mode
    • On chip display RAM
    • Waveform stored in On-chip OTP
    • Serial peripheral interface available
    • On-chip oscillator
    • On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
    • I2C Signal Master Interface to read external temperature sensor
    • Available in COG package


    Package Content

    8.14˝ Spectra™ 6 ePaper Display (ED2208-HAB)

    Specification

    Product Information

    Item

    Specification

    Screen Size

    8.14 inch

    Display Resolution

    1024 (H) × 576 (V) pixel

    ppi

    144

    Active Area

    180.22 (H) × 101.38 (V) mm

    Pixel Pitch

    0.176 × 0.176 mm

    Outline Dimension

    191.9 (H) × 119.4 (V) × 0.85 (D) mm

    Module Weight

    40±4 g
