7.3˝ Spectra™ 6 ePaper Display
$149.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink THOR evaluation kit »
7.3˝ Spectra™ 6 ePaper Display (ED2208-GCA) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It offers 6 colors of black, white, yellow, red, blue and green images.
E Ink Spectra 6, bright and saturated color combinations contributed by 4 –Pigments system for creative promotion and faster update time, wide temperature range to accommodate more needs. High resolution (127 ppi) to display more content to attract consumer's attention.
By applying ED2208-GCA with THOR development kit (driving board + accessories) enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop.
Learn more about THOR Driving Board.

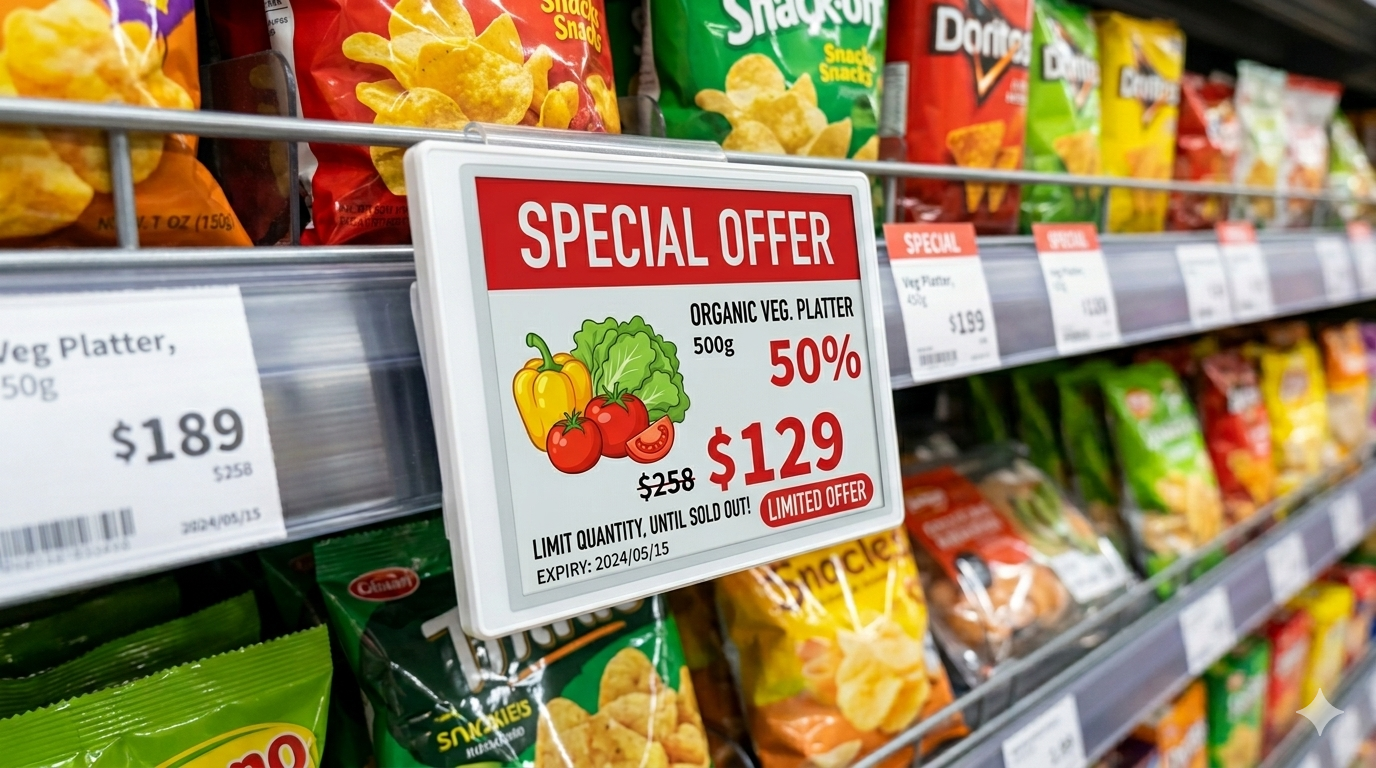

This model is suitable for the applications of ESL.
-
Note
· Driving Board and accessory are not included in the display module package. Please purchase a THOR Driving Board package and THOR Accessories package for 7.3˝ Spectra 6 ePaper Display (ED2208-GCA)
· If you are already in possession of a THOR Driving Board, please make sure you have matching accessories (THOR Accessories package for 7.3˝ Spectra 6 ePaper Display (ED2208-GCA))
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Add to Cart
Added to Cart
Customers also considered
-
![}]()
THOR Accessories
$200.00
Add to Cart
Add to Cart
-
![}]()
THOR Driving Board
$150.00
Add to Cart
Add to Cart
Introduction
About This Item
EPD Layout
Features
- Highlight Red, Yellow, Blue and Green color
- High contrast
- High reflectance
- Ultra wide viewing angle
- Ultra low power consumption
- Pure reflective mode
- Bi-stable
- Antiglare hard-coated front-surface
- Low current deep sleep mode
- On chip display RAM
- Waveform stored in On-chip OTP
- Serial peripheral interface available
- On-chip oscillator
- On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
- I2C Signal Master Interface to read external temperature sensor
- Available in COG package
Package Content
7.3˝ Spectra™ 6 ePaper Display (ED2208-GCA)
Specification
Product Information
Item
Specification
Size
7.3 inch
Display Resolution
800 (H) × 480 (V) pixel
ppi
127
Active Area
160 (H) × 96 (V) mm
Pixel Pitch
0.200 × 0.200 mm
Outline Dimension
170.2 (H) × 111.2 (V) × 0.9 (D) mm
Module Weight
33±9.8 g
