Full Color

Luvia with 25.3˝ Gallery™ Plus ePaper Display

  • Description

    Purchase of E Ink Gallery related products requires signing a Non-disclosure agreement (NDA) & Software License (SLA) before shipment. Please click on “Contact Sales” below to order your kit.

    Luvia with 25.3” E Ink Gallery Plus display (AC253TT1) demo kit allows E Ink clients to access the hardware and software of 25.3” E Ink Gallery Plus display module for evaluation. This kit is a turnkey solution for those who are interested in designing with E Ink signage displays. Hardware and software design support is available from E Ink directly.

    25.3” E Ink Gallery Plus display is suitable for various applications, e.g. Signage, Retail, Digital Art Frame etc…


    E Ink launched the next generation – E Ink Gallery™ Plus in 2022. This full color ePaper module, has a color gamut ideally reaching 60,000, an improvement over the earlier generations. The contrast ratio is improved by 40%, from 10 to 14, providing a more impactful visual experience.


    Price : $ 1500


    « Contact Sales »

  • Note

    The kit does not include an MCU driving board Raspberry Pi #3. Please purchase from Here

  • Introduction

  • Specification

  • Compatibility Table

  • Download

  • Related Products

Introduction

About This Item

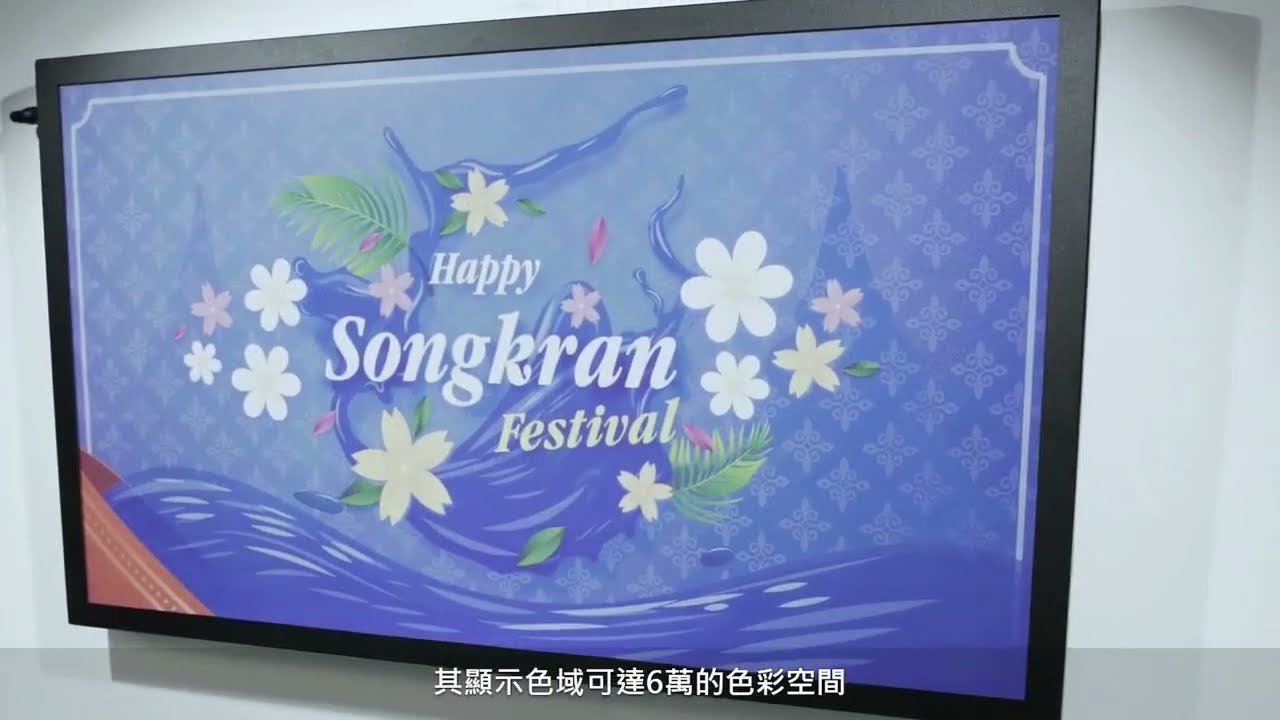

Video

Why should you choose Luvia with 25.3” display

● Accelerated design-in process of color ePaper

● Cost effective lay-out design as reference

● End-products adopt features of E Ink display, such as always-on, low power consumption, sunlight readability, etc.

● Suitable for applications such as signage and retail market

● Hardware and software support from E Ink directly

What Luvia with 25.3” display can do for you

● Demonstrate as a turn-key solution

● Hands-on experiment with Raspberry Pi #3

● Loading and viewing custom images on 25.3” E Ink display

● Easy tryout on applications desired

Features

● 25.3” E Ink Gallery™ Plus display

● Mini-LVDS control board with E Ink TCON IC (T1000)

● Full reference design support directly from E Ink

Package content

● 25.3˝ E Ink Gallery™ Plus Display (AC253TT1)

● Luvia (Tcon board) w/ Mini-LVDS FFC

● Adapters

● Micro USB cable

● SD card

*Notice

Kit does not include MCU driving board Raspberry Pi #3. Please purchase from Here

Specification

Product Information

Item

Specification

Size

25.3

Resolution

3200 (H) × 1800(V) Pixel

Pixel Configuration

Rectangular

Outline Dimension (W/PF)

576.5(W) × 333.0(H) × 0.913(D)

Rectangular (W/O PF)

567.5(W) × 333.0(H) × 0.848(D)

ppi

145

E Ink Film

E Ink Gallery Plus

Controller Board

Outline Dimension

Tcon board : 16cm x15cm / TS board : 27cmx14.4cm / FFC : 10cm Mini-LVDS / FFC cable : 22 cm

Input

12V/5A DC (power on when con.)

RAM

Embedded 64MB

Flash Memory

External 16MB

Operating Temperature

-15~+65 degree

Compatibility Table

E Ink ePaper Display Module v.s. Driving Board

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote

HULK

THOR

ICE

ARDUINO

Salt

Luvia

FLASH

MeeNote
