4096 Colors

31.2˝ Color ePaper Display

$2,300.00

ADD TO FAVORITE

  • Description

    « Compatible with E Ink Salt evaluation kit »

    31.2˝ Color ePaper Display (SB1452-QAA) is a reflective electrophoretic E Ink technology display module based on TFT active matrix with color filter design. It has 31.2” active area with 1280 x 720 pixels, the display is capable to display 4096 colors depending on the display controller and the associated waveform file it used.

  • Note

    ● Driving boards are not included in the display module package. E Ink Salt kit is designed to support this module. Go to Salt

    ● Due to size limitation of module, please refer handling notice to avoid module damage ( Go to handling notice )

Please select the corresponding project, and we will provide you with relevant support files according to your needs.

Application

  • Reading & Writing

  • Education

  • Business & Office

  • Mobile & Wearables

  • Retail

  • Logistics & Factory

  • Healthcare & Hospital

  • Transportation & Outdoor

  • Indoor Signage

  • Home & Appliance

  • Automotive

  • Innovative Design

  • Add to Cart

    Added to Cart

    • Introduction

    • Specification

    • Compatibility Table

    • Download

    • Related Products

    Introduction

    About This Item

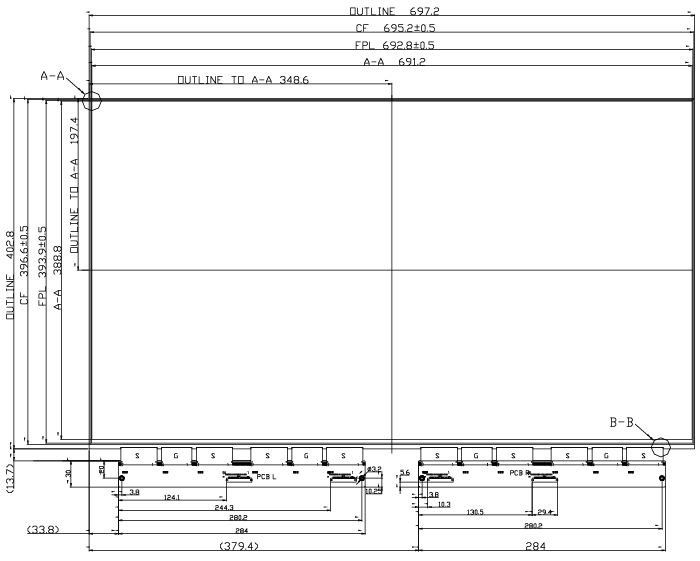

    EPD Layout

    Features

    ● High contrast TFT reflective/electrophoretic technology

    ● 1280 x 720 display

    ● Ultra wide viewing angle

    ● Ultra low power consumption

    ● Bi-stable

    ● Commercial temperature range

    ● pure reflective range


    Package content

    ● 31.2˝ ePaper Display (SB1452-QAA)

    Specification

    Product Information

    Item

    Specification

    Model

    SB1452-QAA

    Size

    31.2 inch

    Resolution

    1280 (H) × 720 (V) pixel

    Active Area

    691.2 (H) × 388.8 (V) mm

    Pixel Pitch

    0.54 (H) × 0.54 (V) mm

    Pixel Configuration

    Square

    Outline Dimension

    697.2 (W) × 402.8 (H) × 1.35 (D) mm

    Total Weight

    800 g

    Gray Level

    16

    ppi

    47

    Backplane

    Glass
